Jakcom CC2 Smart Pocket Camera
Instructions
Product Introduction:
JAKCOM CC2 is a smart compact camera for taking high-definition video and photo;
It can be used as a computer camera;
And it has such built-in smart modes like mobile detection, simultaneous charging and recording, simulation of U disk, TV output and others;
With multiple accessories inside the package, it can expand into rich usage scenarios and become a good helper for you in sporting, travelling, aerial photographing, security and defense, obtaining evidences, taking snapshots.
Packing instruction:
Host x 1
Extended clip x 1
Fixed mount x 1
Double faced adhesive tape for fixed mount x 1
Double faced adhesive tape for host x 1
Supporting screw for fixed mount x 2
Hook & Loop tie x 1
Hand strap x 1
Lanyard x 1
Three-in-one data cable x 1
Portable storage bag x 1
Instruction book x 1

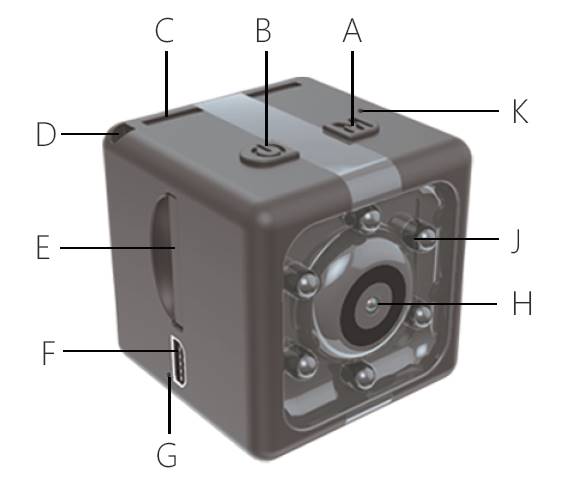

Structure specification:
A Mode key
B On-Off key
C Extended clip slot
D Sling mouth
E TF card slot
F MINI USB socket
G Reset port
H Lens
J Infrared night vision lamp
K Indicator light
Operating instructions:
Insert card:
As shown below, insert TF
card into
TF card slot of the host;
Please check that TF card is completely inserted in before starting up;
The maximum supported memory of TF card in this machine is 32GB;
It is recommended to use a memory card with U3 icon.
Startup & Shutdown:
Starting up:
Long press
on-off key for 3 seconds.
After startup, the indicator light is blue and will last long time.
Shutdown:
Long press on-off key for 6 seconds.
After shutdown, the indicator light is out.
Notes:
The host will shut down automatically when no operation is done within one minute after startup.
When TF card is unidentifiable or not inserted, the indicator light will switch between red and blue and flash quickly for 5 seconds, then the host will automatically shut down;
When TF card runs out of memory, the host will stop shooting, the indicator light will switch between red and blue and flash quickly for 5 seconds, and then automatically shut down;
When the battery is low, the indicator light will switch between red and blue and flash quickly for 5 seconds, then the host will automatically shut down.
Reset:
When the host cannot operate normally, please insert some sharp object like toothpick into the reset port at Position G shown in the structure chart, then press and restart manually.
720p Video:
After startup, the indicator light is blue and will last long time;
Short press on-off key once, the
indicator light will flicker blue for 3 times, and the recording will begin
after the indicator light is out.
1080p Video:
After startup, the indicator light is blue and will last long time;
Short press
mode key once, the
indicator light is blue & red and will last long time;
Short press on-off key once, the
indicator light will flicker blue for 3 times, and the recording will begin
after the indicator light is out.
Stop recording:
During recording, short
press on-off key once to stop recording and enter the standby
mode.
Notes:
During recording, the host stores the videos in the form of a file saved every 5 minutes.
Photographing:
After startup, short press
mode key twice, the indicator light is red and will last
long time, and the photo mode starts.
Short press
on-off key once, and the
indicator light will flicker red once to complete a photo shooting.
Infrared night vision light control:
Open:
After startup,
long press on-off key for 2 seconds, the indicator light will flicker
red twice, and then the infrared night vision light will start up.
Close:
After
recording stops, long press on-off key for 2 seconds, the
indicator light will flicker red for 3 times, and the infrared night vision
light will be off.
Motion detection:
Start recording:
After entering 720p or 1080p recording mode,
Long press mode key for 3 seconds,
the indicator light will flicker red for 3 times and motion detection begins.
When there is object moving in the lens field, the indicator light will be out and recording begins.
Stop recording:
During
recording, short press on-off key once to stop recording
and enter the standby mode.
Charging:
Please charge when first use.
For charging, please use the three-in-one data cable in the package, insert the MINI USB terminal of the data cable into the MINI USB socket of the host, then insert the standard USB terminal of the data cable into 5V charger or portable power source.
During charging, the indicator light is red and flashing. When fully charged, the indicator light is red and will last long time.
Simultaneous charging and recording:
When charging, short
press on-off key once,
After startup, the indicator light is blue and will last long time.
Short press on-off key once again,
the indicator light will flicker blue for 3 times, and the recording will begin
after the indicator light is out.
Short press on-off key once to stop
recording.
TV output:
After startup, use the three-in-one data cable in the package, insert the MINI USB terminal of the data cable into the MINI USB socket of the host, insert the yellow RCA head of the data cable into TV, and adjust TV to AV video mode.
In this mode, images in camera range can be seen through TV, and recording or photographing can still be done as usual.
USB flash disk:
Use the three-in-one data cable in the package, insert the MINI USB terminal of the data cable into the MINI USB socket of the host, then insert the standard USB terminal of the data cable into USB socket of the computer.
After connection to computer, files in TF card of the host can be processed, just like the use of U flash disk,
And you also can use the host as a USB camera for your computer at the same time.
Notes:
Every time before pulling out the data cable, please try to select "safe popup" on computer, so as to ensure that files in TF card are not damaged.
Shooting time setting:
In USB flash disk mode, open the TF card file directory of the host on computer;
Open the text document named "TIMEREST.txt";
Edit and set the current time according to the template format.
Product parameters:
Video format AVI
Video coding M-JPEG
video resolution ratio 1280X720P 1920X1080P
Video frame rate 30 fps
Player software operating system or bring the mainstream video player software
Picture format JPG
Image proportion 16:9
Support system Windows me/2000/xp/2003/vista; Mac os; Linux;
Battery capacity 200mAh
Working time About 100 minutes
Charging voltage DC-5V
interface type Mini 8Pin USB
Storage support TF card
battery type High capacity polymer lithium electricity
Overload power supply is prohibited for this product in case of abnormal temperature increase or fire;
Don’t use wet hands to plug or unplug power supply in case of electric shock;
If this product inside is sprayed with water or damp, please keep it in ventilated places until it is fully dried, then reboot for usage.
Any non-human failure in normal usage is included in the free one-year warranty for main product;
This user manual is printed in batch and can’t be real-time updated. If above content can’t help your usage, please use the link http://ins.JAKCOM.com to look up the latest usage instructions, common questions and answers or contact our customer service staff, we will respond to you as soon as possible.
