JAKCOM ET Non-In-Ear Concept Earphone
Instructions
Product introduction:
JAKCOM ET is a non-in-ear wireless concept earphone
that can connect two mobile phones at the same time. Through auricle reflex and
bone conduction technology, you can keep the ear canal open while wearing, to
hear not only the audio sounds in earphone, but also the surrounding sounds, both
safe and healthy.

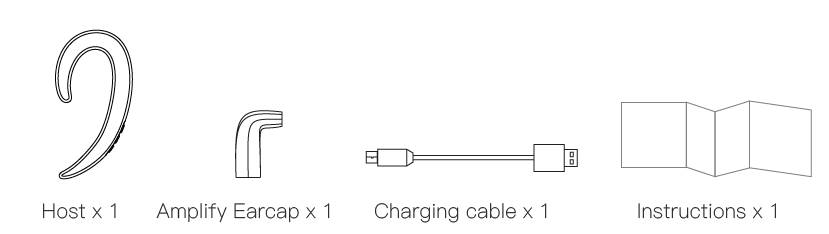

Packing list
Host x 1
Charging cable x 1
Instructions x 1
Amplify Earcap x 1

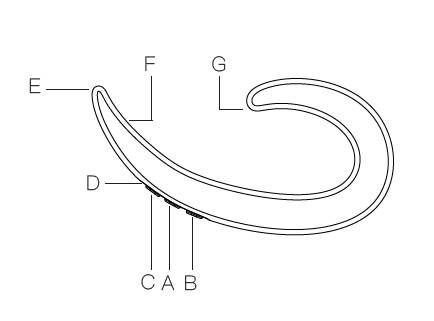

Main structure
A Power button
B Plus sign button
C Minus sign button
D Indicator light
E Microphone
F Charging port
G Speaker
Function description
Boot
l Long press power button for about 3 seconds, with
blue light flashing
Turn off
l Long press the Power button for about 3 seconds,
with red light flashing (Automatically turn off if it is not operated 5 minutes
after boot)
Pairing and Connect
l After Boot, it will automatically enter the
pair-waiting mode, with blue and red lights flashing alternately;
l At this moment, select "ET" for pairing
connection in the Bluetooth pairing waiting list of the mobile phone or other
smart device (if it prompts that you need to enter the pairing password during
connection, enter "0000");
l If there are peripheral devices that have been
successfully connected before, it will automatically connect the device after
boot.
Cancel Pairing
l ET can not cancel the
pairing by itself, it needs to be cancelled in the Bluetooth pairing list of connected
devices.
Change the language of voice prompt
l After cancelled pairing, reboot and enter the
pairing mode, double click the power button to switch language of voice prompt.
Connect two phones or other smart devices at the same time：
l Match the first device according to the above
method
l Turn off Bluetooth on the first device;
l Match the second device according to the above
method;
l Turn ET earphone off;
l Turn on Bluetooth on the first device;
l Turn ET earphone on;
l After the ET earphone is turned on, it will look
for and automatically connect the two devices within 10 seconds.
Call control
l Answer: When calling, click the power button
l Hang up: in a call, click the power button
l Reject: When calling, double click power button
l Redial: Double click the power button
Music control
l Play/Pause: click the power button
l Previous song: click the Plus sign button
l Next song: click the Minus sign button
l Volume up: long press the Plus sign button
l Volume down: long press the Minus sign button
Charge
l In charging, indicator light is red;
Parameter description
l Bluetooth version: BT v4.1 + EDR
l Support mode: HSP / HFP / A2DP / AVRCP
l Transmission distance: 10 meters
l Charging voltage: DC 5V
l Charging current: 0.5A - 1A
l Earphone weight: 8g
l Call duration: about 5 hours
l Standby time: about 100 hours
l Charging time: about 1 hour
Safety warning:
1. Overload power supply is prohibited for this
product in case of abnormal temperature increase or fire;
2. Don’t use wet hands to plug or unplug power
supply in case of electric shock;
3. If this product inside is sprayed with water or
damp, please keep it in ventilated places until it is fully dried, then reboot
for usage.
4. If you do not use this product for a long time,
store it fully charged;
5. It is forbidden to use the charger whose voltage
exceeds DC 5V and current exceeds 1A to charge.
Service:
1. Any non-human failure in normal usage is
included in the free one-year warranty for main product;
2. The quality problems don't include subjective
objections, such as, personal dissent about sound quality, tone and so on;
3. This user manual is printed in batch and can’t
be real-time updated. If above content can’t help your usage, please use the
link http://ins.JAKCOM.com to look up the latest usage instructions, common
questions and answers or contact our customer service staff, we will respond to
you as soon as possible.
a) Website : Http://www.JAKCOM.com
b) Email : service@JAKCOM.com
c) Cellphone：+86 400 806 7311
d) Service hours : 9 am – 9 pm GMT+8
e) Address : Unit 1 No.26 Shuangta
Street Taiyuan City China
