JAKCOM QW3 Super Wireless Quick Charging Pad

Instruction for Use

JAKCOM QW3 is a high-power wireless quick charger which supports Qi EPP charging protocol and can provide maximum wireless charging power of 18W to various digital devices.

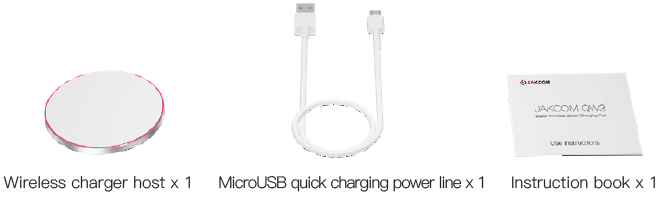

Packing List

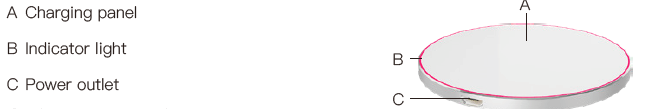

Structure specification

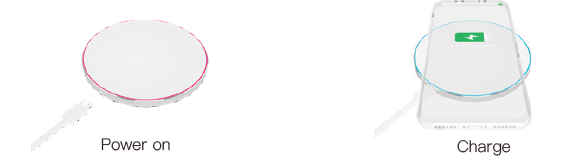

Schematic diagram for use

Specification of indicator light

Blue breathing: Charging/heating

Red normally on: Standing by

Red blinking: Abnormal operation/ foreign matter found

Notes

If you want to charge device B when device A is charging, please wait for the indicator light to be red after taking off device A;

The wireless charging panel can only out put the maximum 18W charging power when the USB power provides over 18W charging power. It is recommended to purchase JAKCOM QW3 QC3 high-power USB quick charger";

Metal-bearing or too thick phone case can seriously affect the working status of the wireless charging panel. In case of charging problems, please first replace or remove the phone case and then retry;

The wireless charging coil of some mobile devices is not in the center of the back, so you are required to test and seek the optimal charging position by yourself

Please use the original Micro-USB fast charging power line in the package, a third-party power line may seriously affect the charging effect.

The charged mobile device needs to conform to the Qi wireless charging protocol.

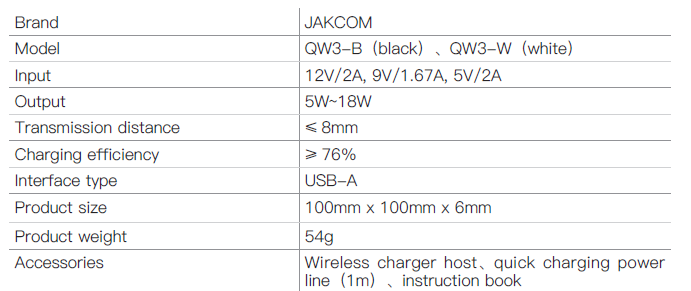

Parameters

Service

This user manual is printed in batch and can’t be real-time updated. If above content can’t help your usage, please use the link http://ins.JAKCOM.com to look up the latest usage instructions, common questions and answers or contact our customer service staff, we will respond to you as soon as possible.

Website : http://www.JAKCOM.com

Email : service@JAKCOM.com

Cellphone：+86 400 806 7311

Service hours : 9 am – 9 pm GMT+8

Address : Unit 1 No.26 Shuangta Street Taiyuan City China
