Product introduction

JAKCOM SE5 is a true wireless professional sports earbuds with ear hook of fall-off preventing design.It is comfortable and stable to wear,and can be wirelessly connected to mobile phone and other devices.It has the tone quality features of high fidelity and mega bass;it conforms to the waterproofing grade of IPX4.The matched magnetic charging storage box can charge the earbuds as many as 7 times,so that the earbuds can continued play for more than 21 hours.

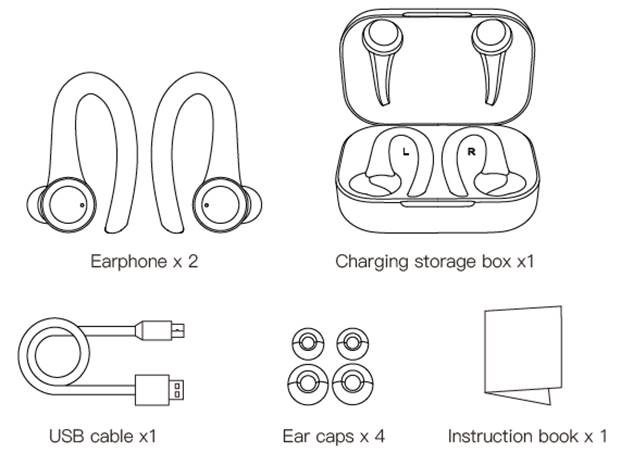

Accessories

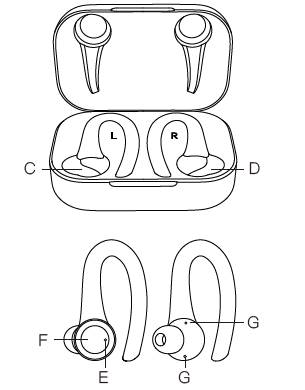

Structure

A. Charging port of storage box

B. Capacity indicator light of storage box

C. Left earbud charging chamber

D. Right earbud charging chamber

E. Earbud indicator light

F. Multi-function touch key

G. Earbud charging contact

Wearing Schematic Diagram

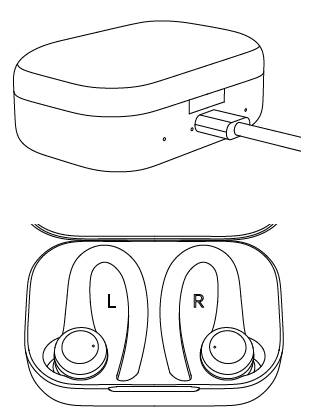

Charging

1.Charging of storage box:

As shown in the figure below, plug the TYPE-C plug of the USB cable into the charging port of the storage box, then connect the USB power to start charging,

Judge the current electric quantity according to the indicator light of the storage box. Each light represents 25% of electric quantity. The indicator light flashes when charging and will be always on when fully charged.

2. Earbud charging:

As shown in the figure below, put the earbuds into the storage box to charge automatically. The indicator light of the earbuds is red when charging and will go out when fully charged.

Power On and Off

Long press the touch key of the left and right earbuds for 5 s to power on and off manually.

Pairing and Connection

1.Take out the earbuds from the storage box to automatically power on and connect;

2.When the indicator light flashes red and blue, the earbuds state is waiting for pairing.

At this time, click "SE5" in the Bluetooth list of the mobile phone to complete pairing connection;

3. If the pairing has been done before, the earbuds will automatically connect to the mobile phone;

4.The left and right earbuds do not make difference between primary and secondary,

They will automatically connect to each other after power on, and can be used independently by one ear;

5.The earbuds will disconnect and enter the standby state automatically when it is placed in the storage box.

Call control

1. Click the touch key to answer the call, long press the touch key to refuse the call;

2. Click the touch key to hang up in a call, long press the touch key to maintain the call;

3. Double click the touch key in standby mode to dial the last call number automatically.

Music control

1. Click the touch key to pause or play music;

2. Triple click the touch key to skip to the previous music;

3. Long press the touch key for two seconds to skip to the next music.

Notes

Please charge for 2 hours before use for the first time to activate the storage box and earbuds;

If the earbuds are still connected after putting back into the charging chamber, take out them and then put back again, so as to ensure the contact between the charging contacts of the earbuds and the charging chamber;

Please keep the product away from the fire source to avoid battery overheating and ignition;

Please keep the product away from infants to avoid swallowing the earphone caps;

Avoid using the earbuds too loud or too long, lest hearing is damaged;

Disassembling the product without authorization will be deprived of after-sale rights and interests.
