JAKCOM TWC True Wireless Quick Charger

Instruction for Use

JAKCOM TWC is a high-power wireless quick charger which supports Qi EPP charging standard and can provide maximum wireless charging power of 18W to mobile phone or digital devices, and supports QC3.0 Quick charge protocols, it also can wirelessly heat all kinds of drinks or food through the heating patch of accessoriess, with complete insulation, safety and reliability.

Packaging and parameters:

Brand：JAKCOM

Color: Cowhide black and Macaroon white

Specifications: CN Standard, US Standard, EU Standard, UK Standard

Size：100mm x 100mm x 6mm

Weight：54g

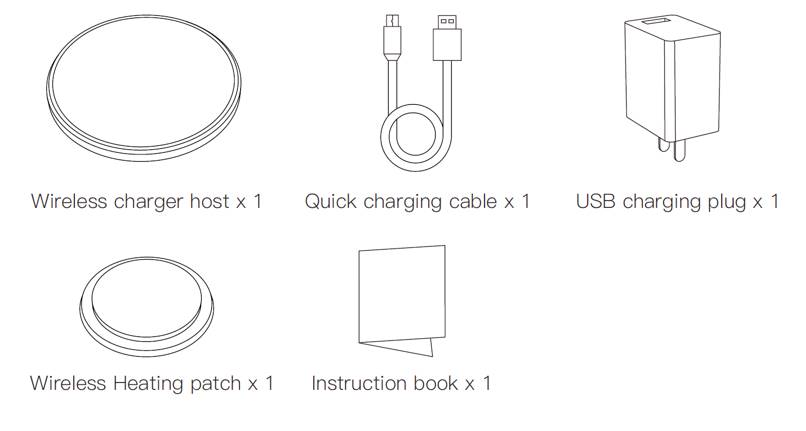

Accessories：Wireless charger host, Quick charging cable（1m）, USB charging plug, Wireless Heating patch,

Output：18W

Constant temperature：55℃±

Application range：All mobile phones or digital devices that support the Qi wireless charging standard

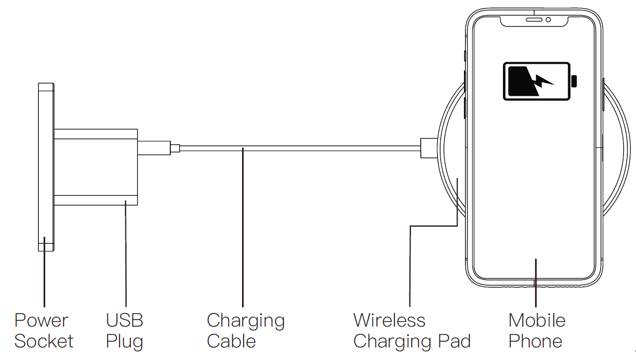

Wireless charging process

1. Insert the plug into the power socket;

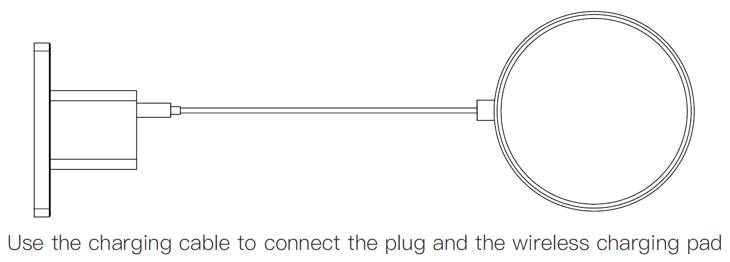

2. Use the charging cable to connect the plug and the wireless charging pad;

3. Place the mobile phone or digital devices on the wireless charging pad.

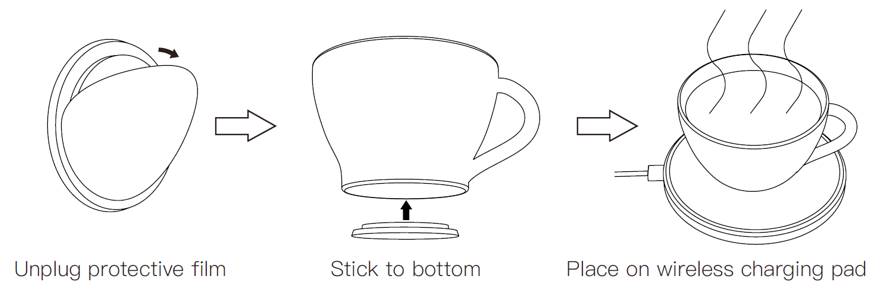

Wireless heating process:

1. Insert the plug into the power socket;

2. Use the charging cable to connect the plug and the wireless charging pad;

3. Unplug the protective film of the wireless heating patch and stick this patch to the bottom of the drink or food;

4. Place the drink or food on the wireless charging pad.

Specification of indicator light:

Blue breathing: Charging / heating

Red normally on: Standing by

Red blinking: Abnormal operation / foreign matter found

Notes:

If you want to charge device B when device A is charging, please wait for the indicator light to be red after taking off device A;

Metal-bearing or too thick phone case can seriously affect the working status of the wireless charging panel. In case of charging problems, please first replace or remove the phone case and then retry;

The wireless charging coil of some mobile devices is not in the center of the back, so you are required to test and seek the optimal charging position by yourself;

Please use the original Micro-USB fast charging power line in the package, a third-party power line may seriously affect the charging effect;

The charged mobile device needs to conform to the Qi wireless charging protocol;

The surface of the wireless heating patch is made of high-performance thermally conductive silicon. Damage it will result in loss of thermal conductivity. It can be pasted repeatedly and washed with water.
